Product Description
Specification
|
MODEL
|
SEI-8K-UP
|
SEI-10K-UP
|
SEI-12K-UP
|
Can Be Set
|
|
NVERTER OUTPUT
|
||||
|
Rated Output Power
|
8,800W
|
10,000W
|
12,000W
|
|
|
Max. Peak Power
|
17,600VA
|
20,000VA
|
24,000VA
|
|
|
Rated Output Voltage
|
120/240Vac, single-phase / split-phase / three-phase(parallel)
|
YES
|
||
|
Load Capacity of Motors
|
5HP
|
6HP
|
6HP
|
|
|
Rated AC Frequency
|
50/60Hz
|
|||
|
BATTERY
|
||||
|
Battery Type
|
Lead-acid / Li-ion / User-defined
|
YES
|
||
|
Rated Battery Voltag
|
48V
|
|||
|
Max. PV Charging Current
|
200A
|
YES
|
||
|
Max. Mains Charging Current
|
120A
|
YES
|
||
|
Max. Alternator Charging Current
|
60A
|
|||
|
Max. Hybrid Charging Current
|
200A
|
YES
|
||
|
PV INPUT
|
||||
|
Num. of MPPT
|
2
|
|||
|
Max. PV Array Power
|
5,500W+5,500W
|
6,600W+6,600W
|
||
|
Max. Input Current
|
22A+22A
|
|||
|
MPPT Operating Voltage Range
|
125～425Vdc
|
|||
|
GENERAL
|
||||
|
Num. of Parallel
|
1～6 units
|
|||
|
Dimensions
|
750*440*240mm (2.46*1.44*0.79ft)
|
|||
|
Weight
|
5 years
|
|||
|
Embedded Interfaces
|
RS485 / CAN / USB / Dry contact
|
YES
|
||

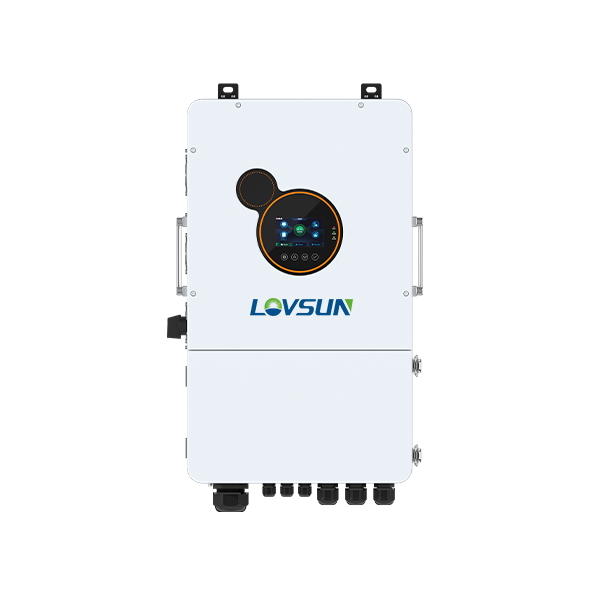

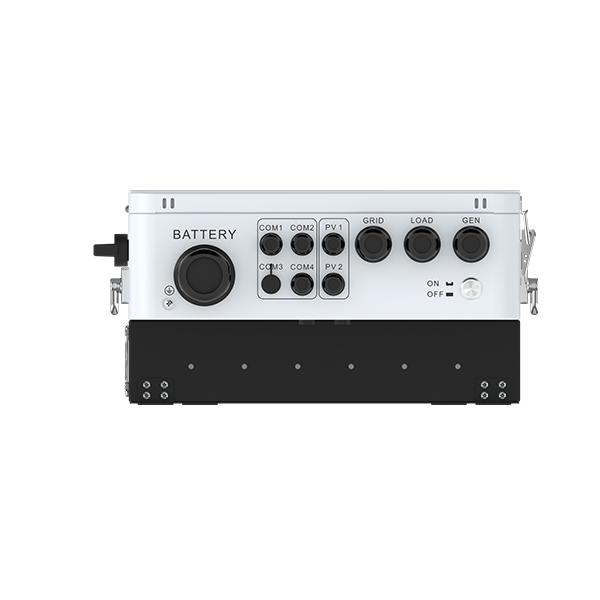

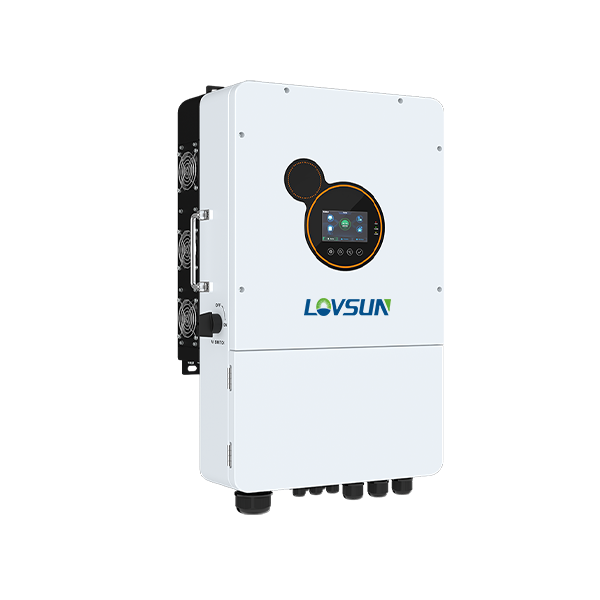

Details Images
