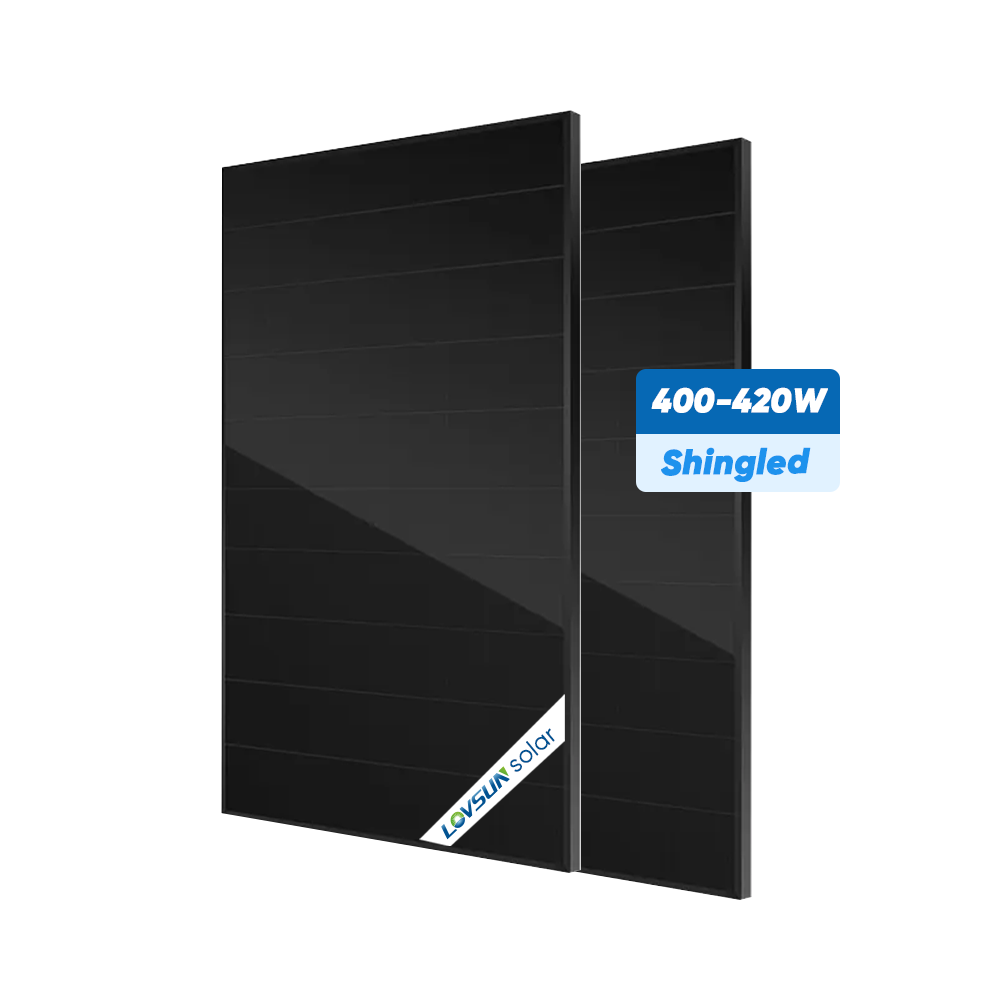

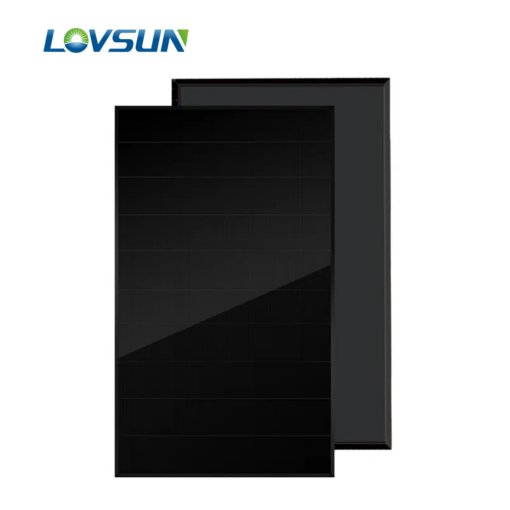

Black Shingle Solar Panel 410w 420w Shingled Solar Panel China Supplier
In order to better serve customers and deliver solar panels on time,
we set warehouses in Rotterdam port , Europe. CE&TUV Certificates, pick up in any time for local service.
Here is the list of real-time updates as below:
Compared with the normal module technology, the interconnected material of shingled module is different from that of normal module,
whose technology is simpler and more reliable, avoiding the defects such as deviation of ribbon and cold soldering.
|
Module Type
|
LH420-445PMB
|
||||
|
Maximum Power-Pm[W]
|
400W
|
405W
|
410W
|
415W
|
420W
|
|
Open Circuit Voltage-Voc[V]
|
43.50V
|
43.58V
|
43.61V
|
43.66V
|
43.68V
|
|
Short Circuit Current-Lsc[A]
|
11.33A
|
11.43A
|
11.44A
|
11.53A
|
11.54A
|
|
Maximum Power Voltage-Vm[V]
|
37.78V
|
37.82V
|
38.31V
|
38.32V
|
38.44V
|
|
Maximum Power Current-Lm[A]
|
10.59A
|
10.72A
|
10.71A
|
10.83A
|
10.93A
|
|
Module Efficiency-N[%]
|
20.85%
|
||||
MECHANICAL DATA
|
Number of Cells
|
108 Cells [6×18]
|
|
Dimensions of Module L*W*H[mm]
|
1723×1134×35mm
|
|
Weight [kg]
|
20.9 kg
|
|
Modules per box
|
31 pieces
|
|
Modules per 40’ container
|
936 pieces
|
|
12 year Product Workmanship Warranty
|
30 year Linear Power Warranty
|
