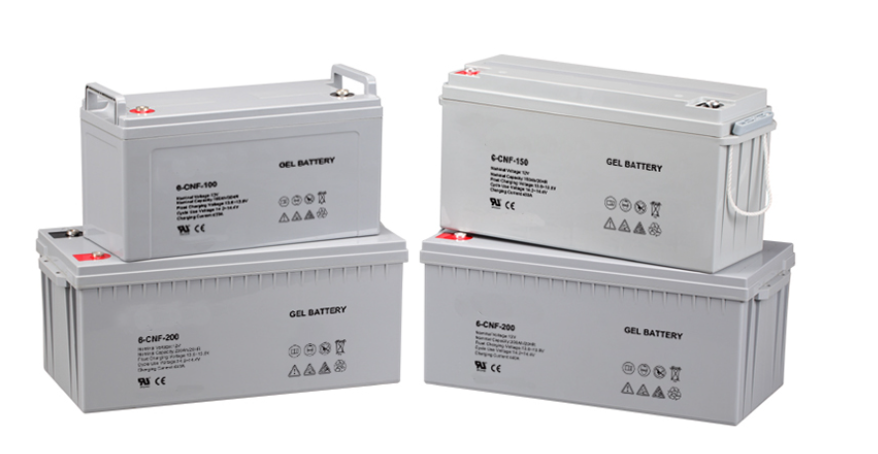

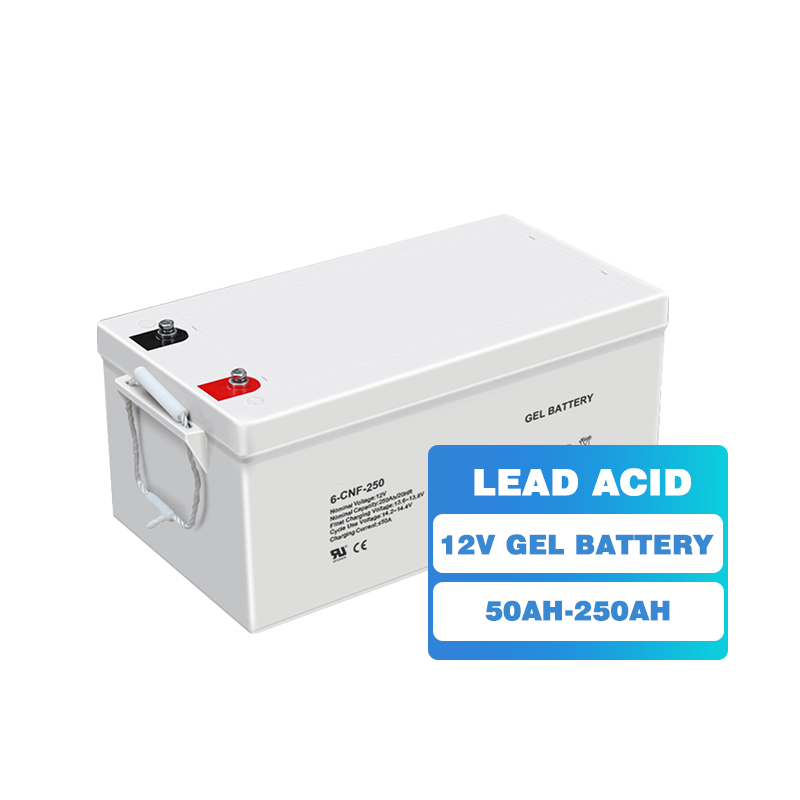

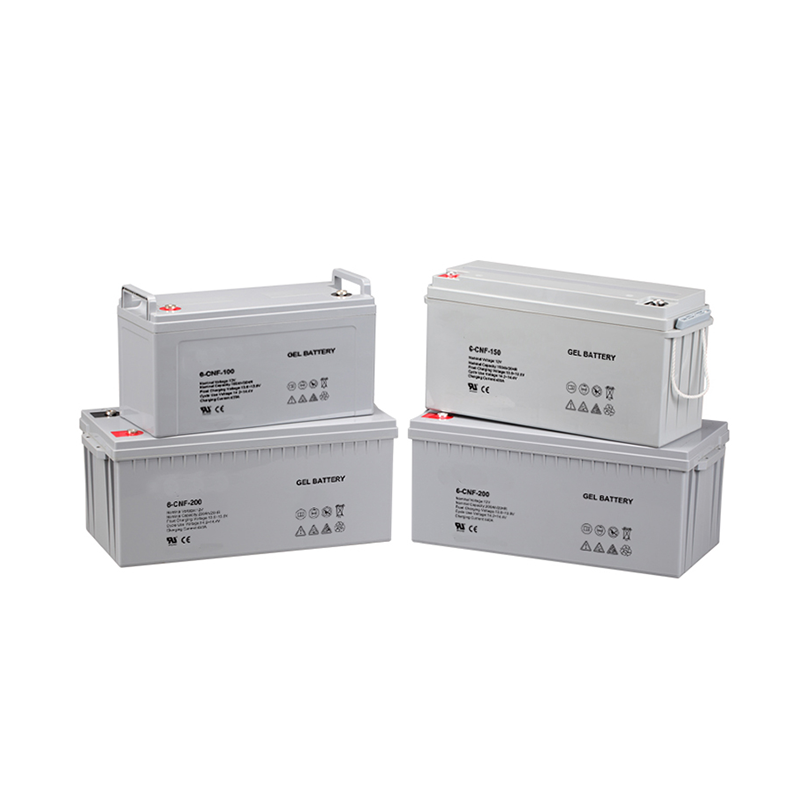

China Manufacturer Deep Cycle Solar Gel Battery 12v 50AH 100AH 150AH 200AH 250AH rechargeable solar gel battery
|
Model
|

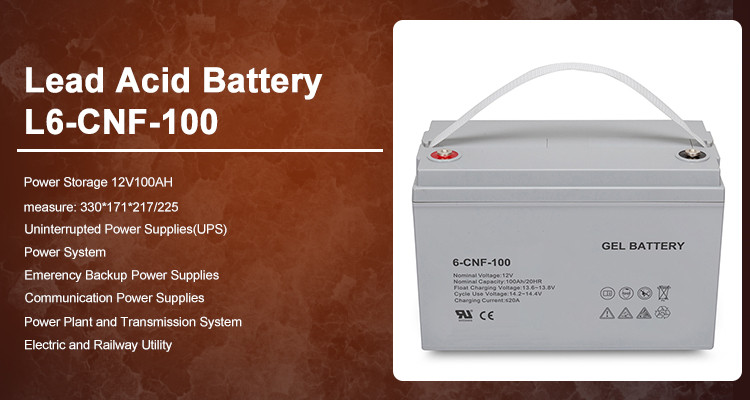

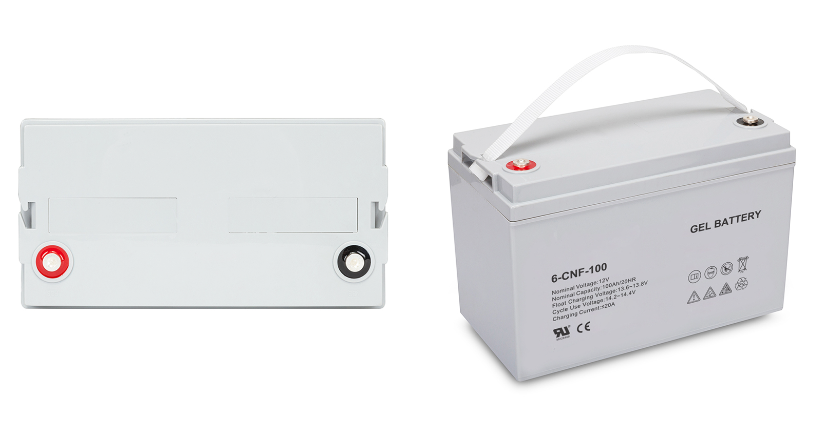

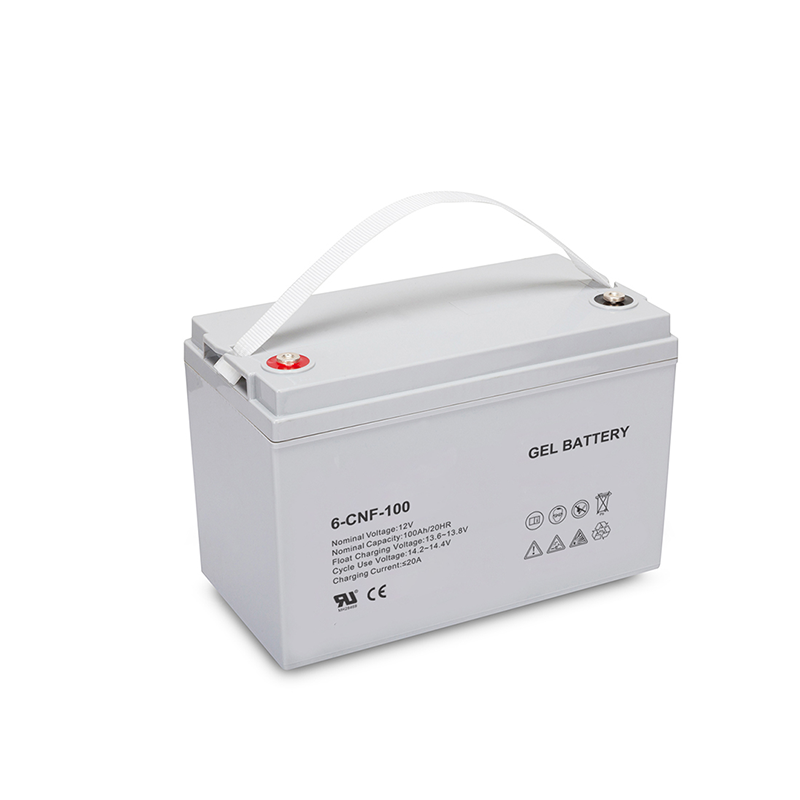

L6-CNF-100
|
|
Cells Per Unit
|
6
|
|
Voltage Per Unit
|
12
|
|
Capacity
|
100Ah@hr-rate to 1.80V per cell @25℃
|
|
Weight
|
29KG
|
|
Internal Resistance
|
Approx.6mΩ
|
|
Terminal
|
F1/F2
|
|
Max.Discharge Current
|
1500A(5s)
|
|
Design Life
|
15 years (floating charge)
|
|
Maximum Charging Current
|
25A
|
|
Reference Capacity
|
C10 100.0 AH C3 74.6AH C1 56.8AH
|
|
Float Charging Voltage
|
13.6V~13.8V @25℃ Temperature Compensation:-20mV/℃/Cell
|
|
Cycle Use Voltage
|
14.4V~14.9V @25℃ Temperature Compensation:-30mV/℃/Cell
|
|
Operating Temperature Range
|
Discharge：-20℃~60℃ Charge：0℃~50℃ Storage：-20℃~60℃
|
|
Normal Operating Temperature Range
|
25℃±5℃
|
|
Self Discharge
|
Less than 3% at 25℃ per month
|
|
Container Material
|
ABS
|
