Product Description
Product Details
Specification
|

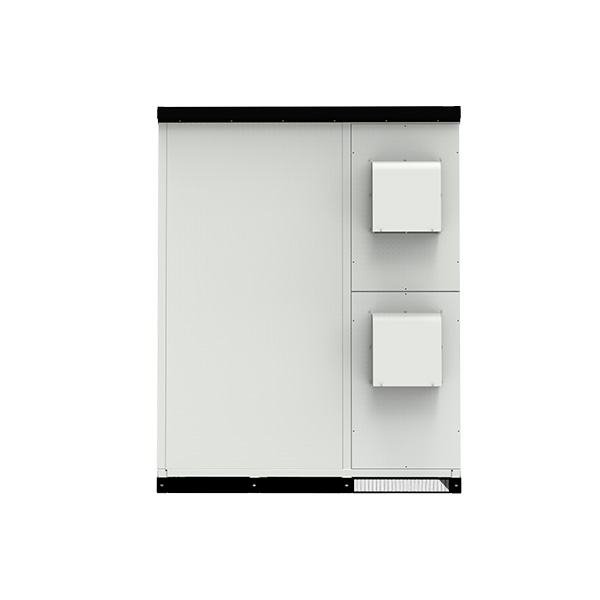

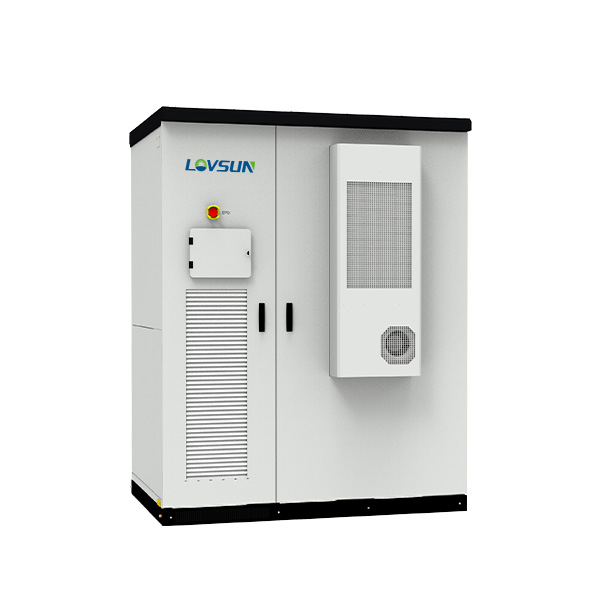

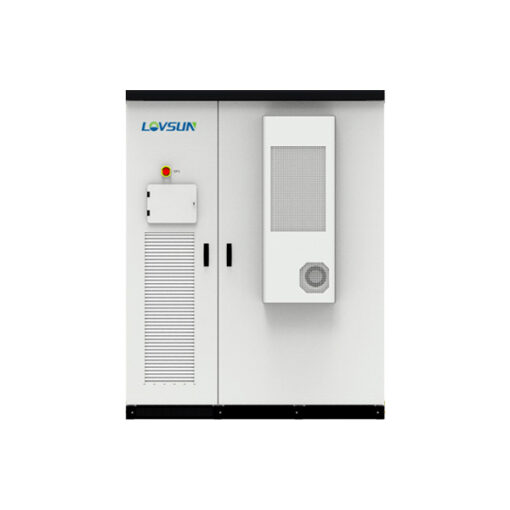

Outdoor Cabinet ESS Specifications
|
|
|
Rated Battery Capacity
|
215kWh
|
|
Rated System Voltage
|
768V
|
|
Battery Type
|
LFP
|
|
Series of Battery
|
1P*20S*12S
|
|
Battery Cell
|
280Ah
|
|
Maximum charge and discharge current
|
140A
|
|
Photovoltaic rated capacity
|
100KW
|
|
Photovoltaic voltage range
|
200-450V
|
|
Rated AC power
|
100KW
|
|
Rated AC current
|
144A
|
|
Rated AC voltage
|
400V，3W+N+PE/3W+PE
|
|
Rated AC frequency
|
-50/60Hz
|
|
THDI
|
＜3%（Rated power）
|
|
Protection level
|
IP 54
|
|
Isolation mode
|
No-Isolation(Adding isolation transformer is optional)
|
|
Shutdown self-discharge
|
＜100W（Without transformer）
|
|
Display
|
LCD
|
|
Ambient temperature
|
-25℃ to +60℃(with derating at temperatures above 45℃)
|
|
Cooling mode
|
Intelligent air-cooled
|
|
Communication interface
|
CAN/Ethernet / 485
|
|
Size (W * D * H)
|
800*1200*2300mm
|
|
Weight (approx.)
|
3100KG
|
