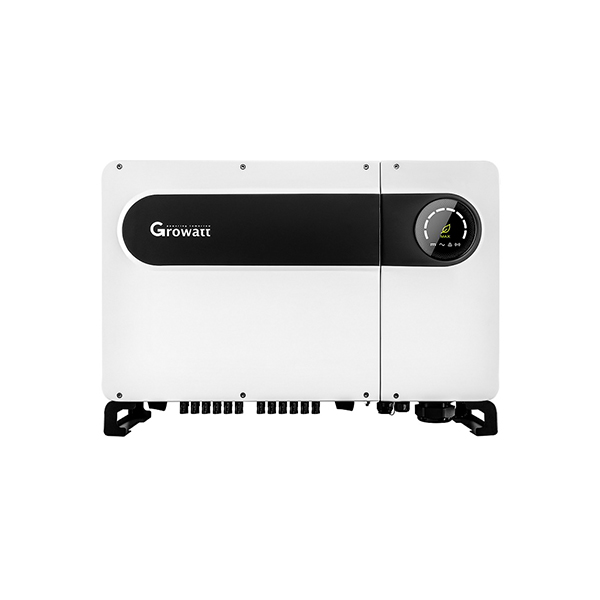

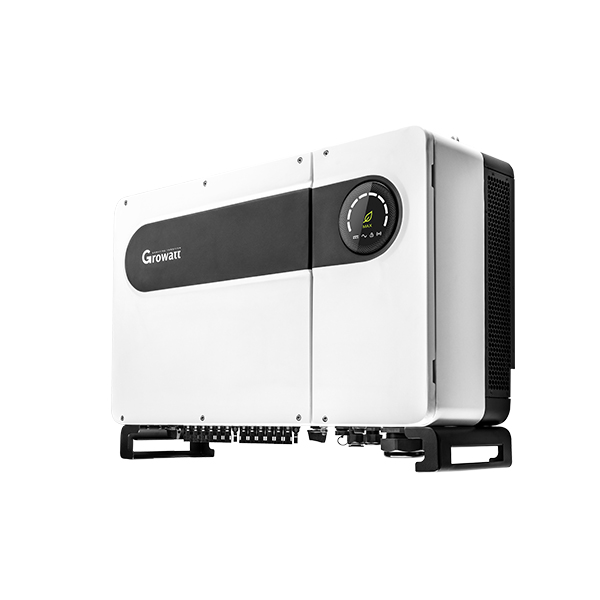

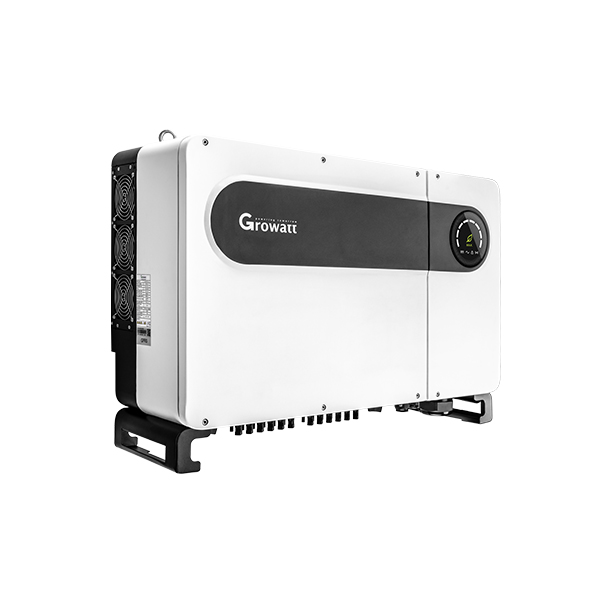

Growatt MAX 50KTL3 LV 3 phase 6 MPPT 50kw 60kw 70kw 80kw100KW 120W 230V 400V with wifi module Growatt on grid solar inverter
|
Datasheet
|
50KW
|
60KW
|
70KW
|
80KW
|
100KW
|
110KW
|
120KW
|
125KW
|
|
Input data (DC)
|
||||||||
|
Max.DC voltage
|
1100V
|
|||||||
|
Start voltage
|
250V
|
195V
|
||||||
|
Nominal voltage
|
585V
|
585V
|
600V
|
600V
|
600V
|
600V
|
600V
|
600V
|
|
MPPT voltage range
|
200V-1000V
|
180V-1000V
|
||||||
|
No. of MPP trackers
|
6
|
6
|
7
|
7
|
10
|
10
|
10
|
10
|
|
No. of PV strings per MPP tracker
|
2
|
|||||||
|
Max. input current per MPP tracker
|
26A
|
32A
|
||||||
|
Max. short-circuit current per MPP tracker
|
32A
|
40A
|
||||||
|
Output data (AC)
|
||||||||
|
AC nominal power
|
50000W
|
60000W
|
70000W
|
80000W
|
100000W
|
110000W
|
120000W
|
125000W
|
|
Max. AC apparent power
|
55500VA
|
66600VA
|
77700VA
|
88800VA
|
110000VA
|
121000VA
|
132000VA
|
137500VA
|
|
Nominal AC voltage(range*)
|
220V/380V, 230V/400V (340-440V)
|
230V/400V(340-440VAC)
|
||||||
|
AC grid frequency(range*)
|
50/60 Hz (45-55Hz/55-65 Hz)
|
|||||||
|
Max. output current
|
80.5A
|
96.6A
|
112.7A
|
128.8A
|
158.8A
|
174.6A
|
190.5A
|
198.5A
|
|
Adjustable power factor
|
0.8leading …0.8lagging
|
|||||||
|
THDi
|
<3%
|
|||||||
|
AC grid connection type
|
3W+N+PE
|
|||||||
|
Efficiency
|
||||||||
|
Max.efficiency
|
98.80%
|
98.80%
|
99%
|
99%
|
98.80%
|
98.80%
|
98.80%
|
98.80%
|
|
European efficiency
|
98.40%
|
98.40%
|
98.50%
|
98.50%
|
98.50%
|
98.50%
|
98.50%
|
98.50%
|
|
MPPT efficiency
|
99.90%
|
|||||||
|
Protection devices
|
||||||||
|
DC reverse polarity protection
|
Yes
|
|||||||
|
DC switch
|
Yes
|
|||||||
|
DC surge protection
|
Type II / Type II
|
|||||||
|
Insulation resistance monitoring
|
Yes
|
|||||||
|
AC short-circuit protection
|
Yes
|
|||||||
|
Ground fault monitoring
|
Yes
|
|||||||
|
Grid monitoring
|
Yes
|
|||||||
|
Anti-islanding protection
|
Yes
|
|||||||
|
Residual-current monitoring unit
|
Yes
|
|||||||
|
String monitoring
|
Yes
|
|||||||
|
AFCI protection
|
Optional
|
|||||||
|
Anti-PID function
|
Optional
|
|||||||
|
General data
|
||||||||
|
Dimensions (W / H / D)
|
860/600/300mm
|
970/640/345mm
|
||||||
|
Weight
|
82kg
|
82kg
|
86kg
|
86kg
|
84kg
|
84kg
|
84kg
|
84kg
|
|
Operating temperature range
|
–25°C … +60°C
|
–30°C … +60°C
|
||||||
|
Self-consumption
|
<1W
|
|||||||
|
Topology
|
Transformerless
|
|||||||
|
Cooling
|
Smart air cooling
|
|||||||
|
Protection degree
|
IP65
|
IP66
|
||||||
|
Relative humidity
|
0-100%
|
|||||||
|
Altitude
|
4000m
|
|||||||
|
DC connection
|
H4/MC4(Optional)
|
|||||||
|
AC connection
|
Cable gland+OT terminal
|
OT Terminal (Max. 240mm²)
|
||||||
|
Display
|
LED/WIFI+APP
|
|||||||
|
Interfaces: RS485 / USB /WiFi/ RF/GPRS
|
Yes/Yes /Optional/Optional/Optional
|
|||||||
|
Warranty: 5 years / 10 years
|
Yes /Optional
|
|||||||
