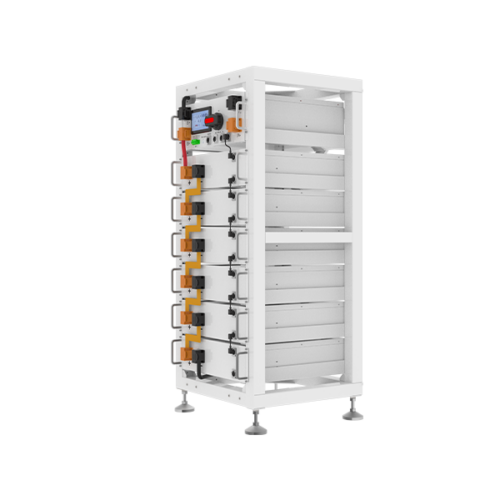

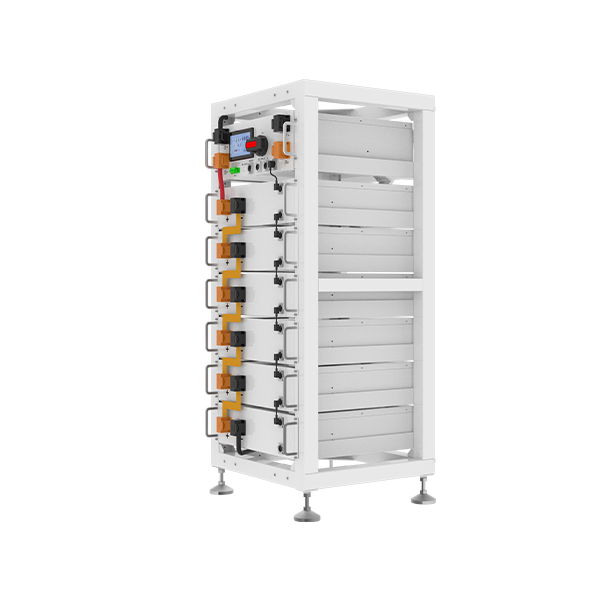

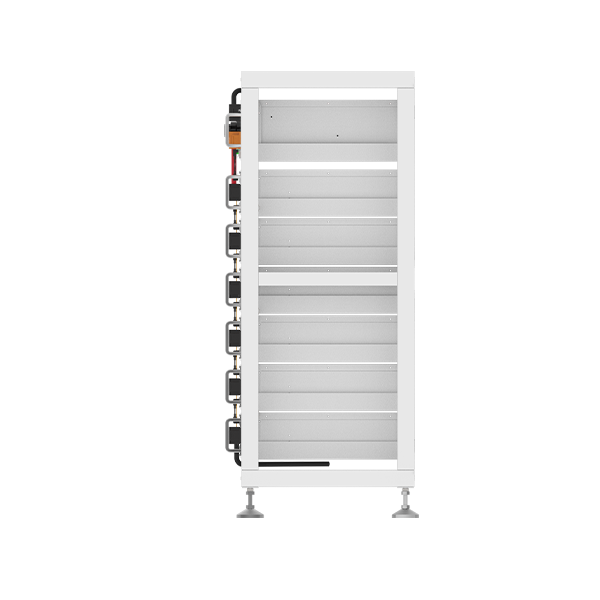

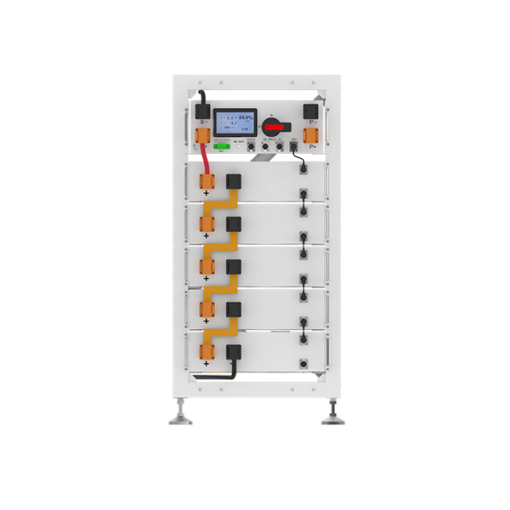

Lovsun high voltage Battery 51.2V 48V 100AH 280Ah Solar Storage 5kwh Lithium ion battery 10kwh 15kWh LiFePO4 Battery pack
Specification
|
Model
|
LFP 5000
|
LFP 2400
|
LFP 2500
|
LFP 2600HV
|
|
Total energy(DC)
|
5.1kWh
|
2.4kWh
|
2.5kWh
|
2.56kWh
|
|
Usable energy(DC)
|
4.8kWh
|
2.2kWh
|
2.3kWh
|
2.2kWh
|
|
Norminal dis-/charge power
|
3.0kw
|
1.5kw
|
1.5kw
|
1.5kw
|
|
Peak power(only discharge)
|
6kw for 3s
|
3kw for 3s
|
3kw for 3s
|
3kw for 3s
|
|
Constant current(only discharge)
|
80A
|
40A
|
40A
|
20A
|
|
Voltage
|
48-56Vdc
|
48-56Vdc
|
48-56Vdc
|
96-112Vdc
|
|
Norminal voltage
|
51.2Vdc
|
51.2Vdc
|
51.2Vdc
|
102.4Vdc
|
|
Norminal current
|
60A
|
30A
|
30A
|
15A
|
|
Max.charge voltage
|
57.6Vdc
|
57.6Vdc
|
57.6Vdc
|
115.2Vdc
|
|
Weight
|
45kg
|
27.5kg
|
27kg
|
27kg
|
|
Dimension(mm)
|
500*448*135mm
|
500*442*133mm
|
500*442*88mm
|
500*442*88mm
|
|
Max.recommended DOD
|
90%
|
|||
|
Cooling type
|
Natural cooling
|
|||
|
Installation
|
Wall mounting/Ground Installation
|
|||
|
IP rating
|
IP20
|
|||
|
Protective class
|
I
|
|||
|
Max.numbers of parallel or series
|
8S/8P
|
8S/8P
|
8S/8P
|
6S
|
|
Warranty
|
10years
|
|||
|
Life span
|
>15years
|
|||
|
Communication
|
CAN/RS485
|
|||
|
Protection mode
|
Dual hardware protection
|
|||
|
Battery protection
|
Over-current/Over-voltage/Short circuit/Under voltage/Over temperature
|
|||
|
Safety
|
CE TUV
|
|||
|
Transportation
|
UN38.3
|
|||
Monitoring Solution
lovsun self-developed APP complements the product for easy monitoring by both customers and Lovsun. The APP enables Lovsun to provide proactive after-sales services.
