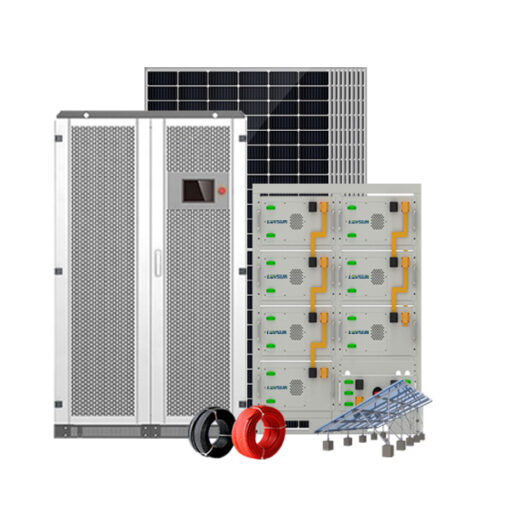

Megarevo Complete Set Solar Energy System 30kw 50kw 100kw 150kw 250kw 500kw Commercial Hybrid Solar System with Lifepo4 Battery
Product Description
Specification
|
odel
|
MPS0030
|
MPS0050
|
MPS0100
|
MPS0150
|
MPS0250
|
MPS0500
|
|
AC(grid-connected)
|
||||||
|
Rated power
|
30kW
|
50kw
|
100kw
|
150kw
|
250kw
|
500kW
|
|
Rated current
|
43A
|
72A
|
144A
|
217A
|
361A
|
722A
|
|
Voltage range
|
320V-460V
|
|||||
|
Rated frequency
|
50/60Hz
|
|||||
|
Frequency range
|
45-55/55-65Hz
|
|||||
|
THDI
|
<3%
|
|||||
|
PF
|
0.8lagging-0.8leading
|
|||||
|
AC connection
|
3W+N+PE
|
|||||
|
Transformer
|
Yes
|
|||||
|
AC(off-grid)
|
||||||
|
Apparent power
|
33KVA
|
55KVA
|
110KVA
|
165KVA
|
275KVA
|
550KVA
|
|
Rated power
|
50KW
|
50KW
|
100KW
|
150KW
|
250KW
|
500KW
|
|
Rated Voltage
|
400V
|
|||||
|
Rated Current
|
43A
|
72A
|
144A
|
217A
|
361A
|
722A
|
|
THDU
|
≤ 2% linear
|
|||||
|
Rated frequency
|
50/60Hz
|
|||||
|
Overload capability
|
110%-10min120%-1min
|
|||||
|
PV
|
||||||
|
Max. PV open-circuit
voltage |
1000VDC
|
|||||
|
Max Power
|
60/120KW
|
120/180/240KW
|
300/360KW
|
600/660/720KW
|
||
|
PV MPPT Voltage Range
|
220-850V
|
|||||
|
MPPT Number
|
1/2
|
2/3/4
|
5/6
|
10/11/12
|
||
|
Battery
|
||||||
|
Battery Voltage
|
150V-850V
|
420V-850V
|
500V-850V
|
|||
|
Battery Full Loading Operation Volaage Range
|
150V-850V
|
420V-850V
|
500V-850V
|
|||
|
General data
|
||||||
|
Dimension(WXDXH)
|
800X800X1900mm
|
1200X800X2050mm
|
1800X800X2050mm
|
2800X800X2050mm
|
||
|
Weight
|
440kg
|
620kg
|
900kg
|
1250kg
|
1700kg
|
3520kg
|
|
Environmental temperature
|
-25ºC~+55ºC
|
|||||
|
Relative humidity
|
0-95%non-condensing
|
|||||
|
Protection degree
|
IP20
|
|||||
|
Noise emission
|
75dB(A)@1m
|
|||||
|
Max.imum altitude
|
5000m(derate over 3000m)
|
|||||
|
Cooling
|
Forced-air
|
|||||
|
Communication
|
||||||
|
Display
|
Touch screen LCD
|
|||||
|
Communication interface
|
RS485/CAN
|
|||||

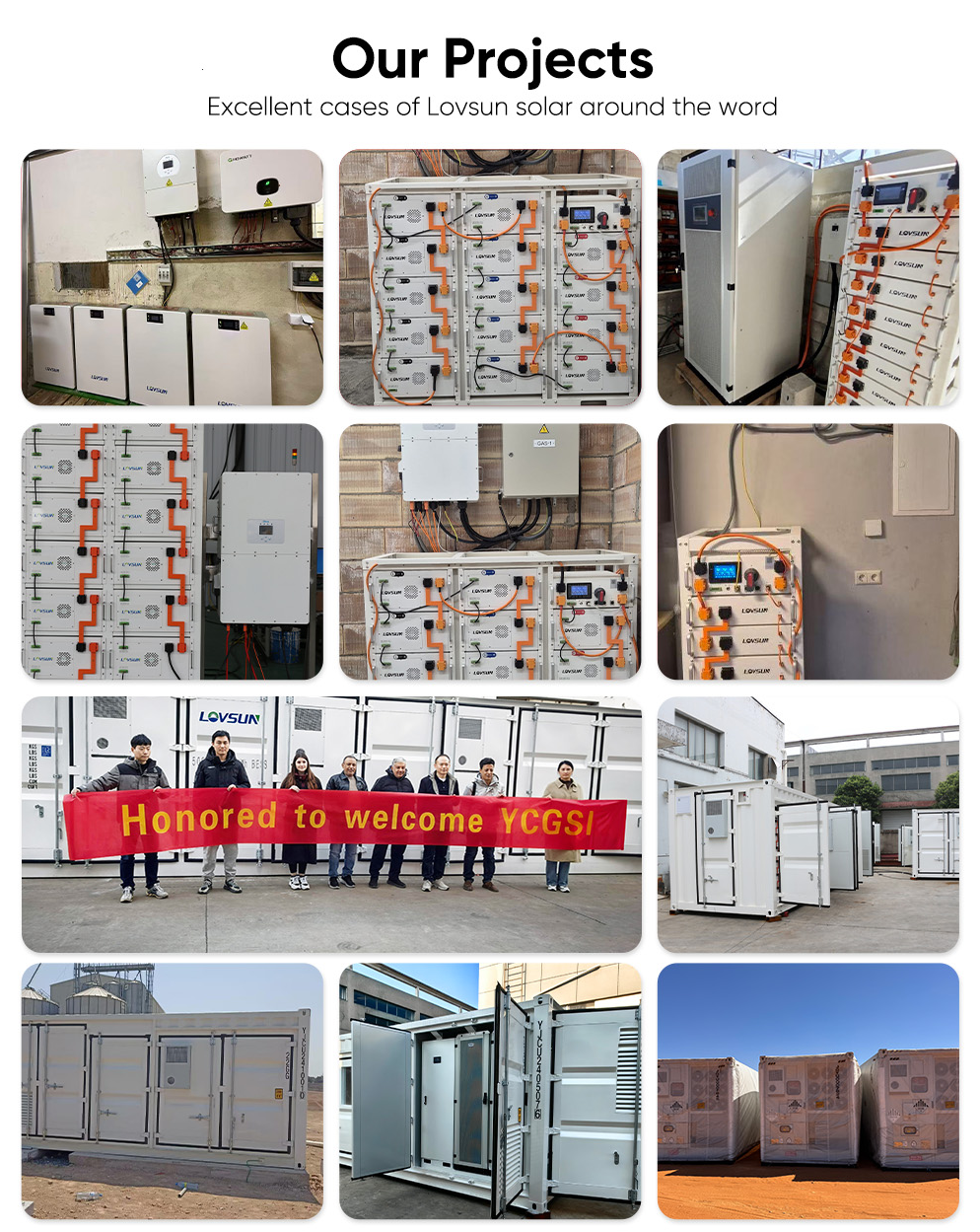

Project Case
Certifications
