Solis Hybrid Solar Inverter 12kw 15kw 20kw 3 Phase High Voltage 380/400V Energy Storage S6-eh3p(12-20)k-h
Specifications
|
Model Name
|
S6-EH3P12K-H
|
S6-EH3P15K-H
|
S6-EH3P20K-H
|
|
Input DC(PV side)
|
|||
|
Recommended max. PV array size
|
24KW
|
30KW
|
40KW
|
|
Max. usable PV input power
|
19.2KW
|
24KW
|
32KW
|
|
Max. input voltage
|
1000V
|
||
|
Rated voltage
|
600V
|
||
|
Start-up voltage
|
160V
|
||
|
MPPT voltage range
|
200-850V
|
||
|
Max. input current
|
20 A / 20 A / 20 A / 20 A
|
||
|
Max. short circuit current
|
30 A / 30 A / 30 A / 30 A
|
||
|
Max. input power per MPPT
|
9KW
|
||
|
MPPT number/Max. input strings number
|
4/4
|
||
|
Battery
|
|||
|
Battery type
|
Li-ion
|
||
|
Battery voltage range
|
120-800V
|
||
|
Max. charge / discharge power
|
12KW
|
15KW
|
20KW
|
|
Max. charge / discharge current
|
50A
|
||
|
Communication
|
CAN/RS485
|
||
|
Output AC (Grid side)
|
|||
|
Rated output power
|
12kW
|
15kW
|
20kW
|
|
Rated grid voltage
|
3/N/PE, 380 V / 400 V
|
||
|
Rated grid frequency
|
50/60Hz
|
||
|
Rated grid output current
|
18.2 A / 17.3 A
|
22.8 A / 21.7 A
|
30.4 A / 28.9 A
|
|
Power Factor
|
>0.99 (0.8 leading – 0.8 lagging)
|
||
|
Output AC (Back-up)
|
|||
|
Rated output power
|
12KW
|
15KW
|
20KW
|
|
Max. apparent output power
|
2 times of rated power, 10s
|
||
|
Back-up switch time
|
＜10ms
|
||
|
Rated output voltage
|
3/N/PE, 380 V / 400 V
|
||
|
Rated output current
|
18.2A/17.3A
|
22.8A/21.7A
|
30.4A/28.9A
|
|
Efficiency
|
|||
|
Max. efficiency
|
98.5%
|
||
|
Protection
|
|||
|
Anti-islanding protection
|
Yes
|
||
|
Output over current protection
|
Yes
|
||
|
Short circuit protection
|
Yes
|
||
|
Integrated AFCI (DC arc-fault circuit protection)
|
Yes
|
||
|
Integrated DC switch
|
Yes
|
||
|
Battery reverse protection
|
Yes
|
||
|
General Data
|
|||
|
Dimensions (W*H*D)
|
599*546*235 mm
|
||
|
Weight
|
31kg
|
31.7kg
|
|
|
Ingress protection
|
IP66
|
||
|
Cooling concept
|
Natural convection
|
Intelligent redundant fan-cooling
|
|
|
Features
|
|||
|
PV connection
|
MC4 connector
|
||
|
Battery connection
|
OT terminal
|
||
|
Display
|
LCD+Bluetooth+APP
|
||
|
Communication
|
CAN, RS485, Ethernet, Optional: Wi-Fi, Cellular, LAN
|
||

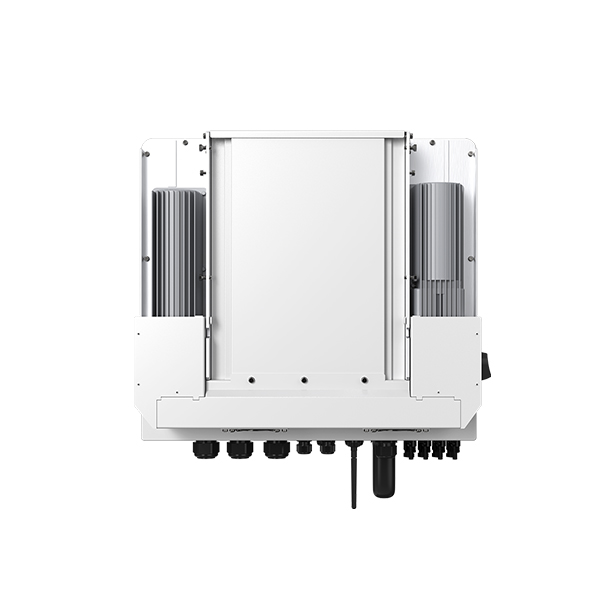

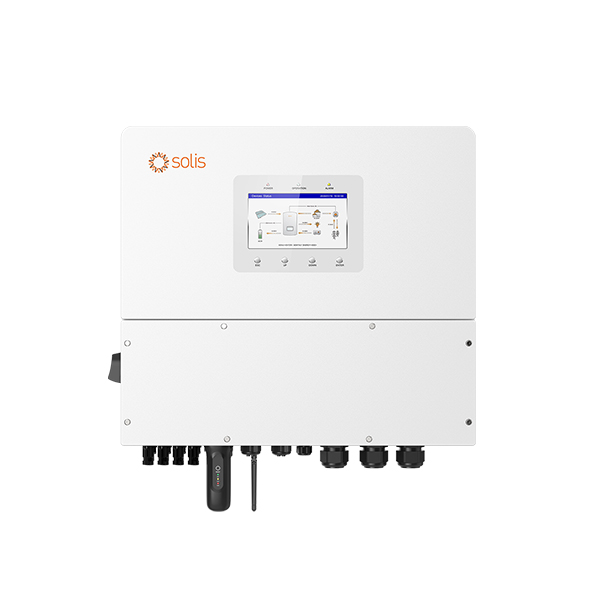

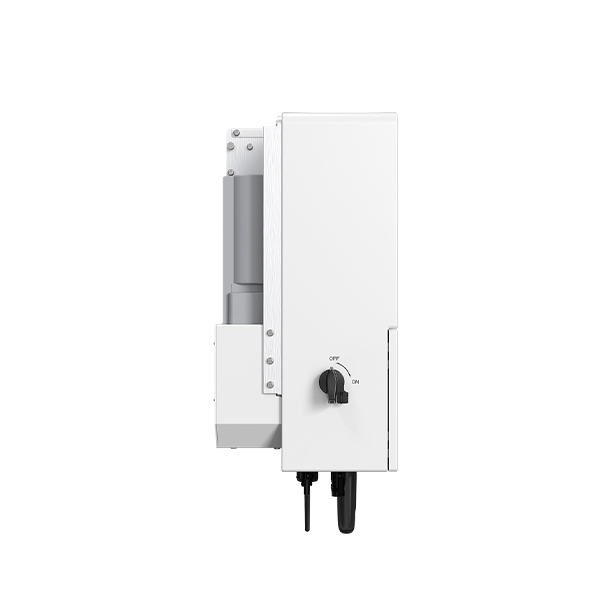

Details Images
