Product Description
Product Parameters
|
Model
|
SPI-8K-UP
|
SPI-10K-UP
|
Can be set
|
|

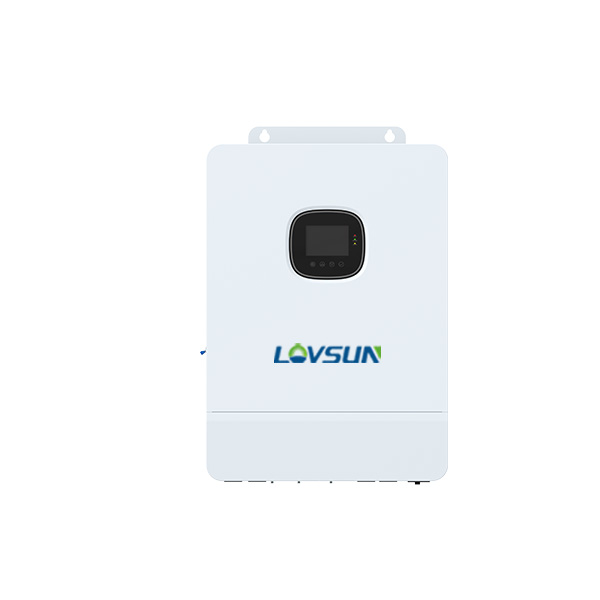

Inverter
|
|||
|
Rated Output Power
|
8000W
|
10000W
|
|
|
Max.Peak Power
|
16000W
|
20000W
|
|
|
Rated Output Voltage
|
120/240Vac（L1/L2/N/PE split phase）
|
Y
|
|
|
Load Capacity of Motors
|
5HP
|
6HP
|
|
|
Rated AC Frequency
|
50/60Hz
|
Y
|
|
|
Waveform
|
Pure Sine Wave
|
||
|
Switch Time
|
10ms（typical）
|
||
|
Parallel Capacity
|
/
|
||
|

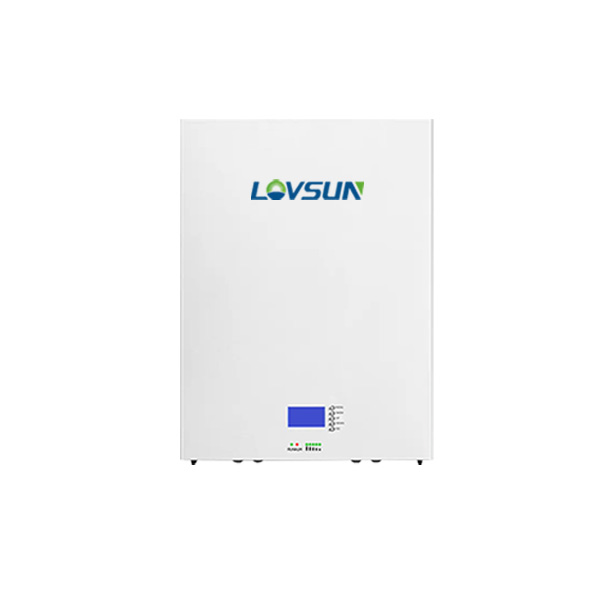

Battery
|
|||
|
Battery Type
|
Li-ion / Lead-Acid / User Defined
|
Y
|
|
|
Rated Battery Voltage
|
48Vdc
|
||
|
Voltage Range
|
40～60Vdc
|
Y
|
|
|
Max.MPPT Charging Current
|
200A
|
Y
|
|
|
Max.Mains/Generator Charging
|
100A
|
120A
|
Y
|
|
Max.Hybrid Charging Current
|
180A
|
200A
|
Y
|
|

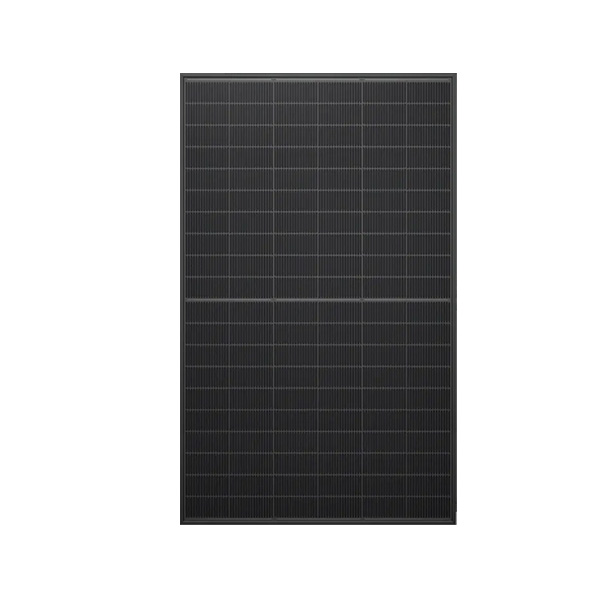

PV input
|
|||
|
Num. of MPPT Trackers
|
2
|
||
|
Max.PV Array Power
|
11000W
|
||
|
Max.Input Current
|
22/22A
|
||
|
Max.Voltage of Open Circuit
|
500Vdc
|
||
|
MPPT Voltage Range
|
125~425Vdc
|
||
|
Utility/Generator Input
|
|||
|
Input Voltage Range
|
90～140Vac
|
||
|
Frequency Range
|
50/60Hz
|
||
|
Bypass Overload Current
|
63A
|
||
|
Efficiency
|
|||
|
MPPT Tracking Efficiency
|
99.9%
|
||
|
Max. Battery Inverter Efficiency
|
92%
|
||
|
General
|
|||
|
Dimensions
|
620*435*130mm （2*1.4*0.4ft）
|
||
|
Weight
|
20kg （44lb)
|
21kg （46.3lb）
|
|
|
Protection Degree
|
IP20，Indoor Only
|
||
|
Operating Temperature Range
|
-10~55℃,>45℃ derated
|
||
|
Humidity
|
-25°C ~ 60°C
|
||
|
Cooling Method
|
Internal Fan
|
||
|
Warranty
|
2Years
|
||
|
Communication
|
|||
|
Embedded Interfaces
|
RS485/CAN/USB/ Dry contact
|
Y
|
|
|
External Modules（Optional）
|
Wi-Fi / GPRS
|
Y
|
|
|
Certification
|
|||
|
Safety
|
IEC62109-1, IEC62109-2,UL1741
|
||
|
RoHs
|
Yes
|
||
|
EMC
|
EN61000-6-1, EN61000-6-3, FCC 15 class B
|
||
